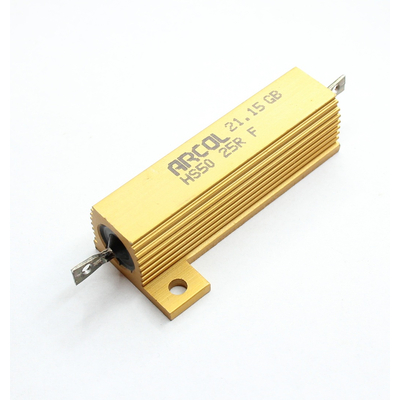

Wirewound Resistor with Heatsink 25 Ohm 50W 1%

Item number: HS50 25R F

Category: Lead batteries 2V + 4V

5,75 €

including 19% VAT. , (Standard)

From piece Price per unit
2 5,58 €
4 5,40 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

Wirewound Resistor with Heatsink 25 Ohm 50W 1%
  • Manufacturer: ARCOL/OHMITE
  • Resistor type: Wirewound resistor
  • Resistor style: With heatsink
  • Mounting: Screw-mount
  • Resistance: 25?
  • Power rating: 50W
  • Tolerance: ±1%
  • Operating voltage: 1.25kV
  • Housing dimensions: 49.1x29.7x14.8mm
  • Resistor characteristics: Additional heatsink required
  • Temperature coefficient: 100ppm/°C
  • Terminals: Solder connection
  • Mounting hole spacing: 39.7x21.4mm
  • Power rating without additional heatsink: 14W
