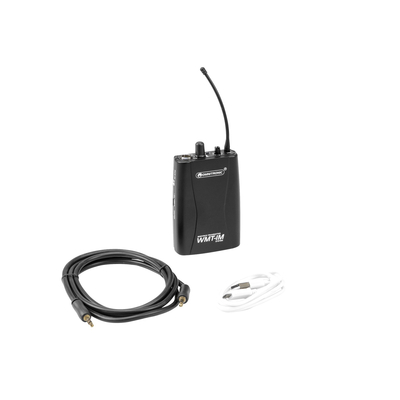

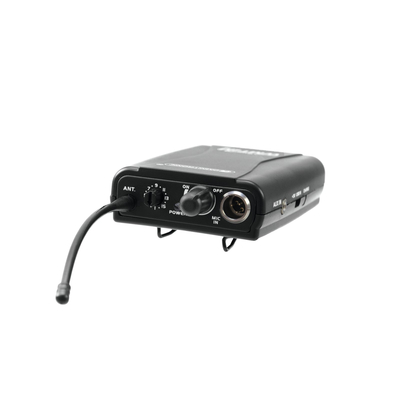

Wireless mono audio transmission systemTransmitter 823-832 MHz - WMT-1M UHF
Description
Wireless mono audio transmission systemTransmitter 823-832 MHz - WMT-1M UHF
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Duplex gap 823-832 MHz
- Parallel use of up to 4 transmitters possible
- Compatible with MOM-10BT4 system
- 16 channels selectable
- Audio line input (3.5 mm jack) and microphone input (mini XLR)
- Volume level control
- Operation via 2 batteries or rechargeable batteries size AA
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip
- Incl. USB charging cable and 3.5 mm audio cable
- License-free and approved in large parts of the EU
- Battery: 2 xMignon (AA) included
Technical specifications
| Power supply: | 5 V DC |
| 3 V DC | |
| Power connection: | Mains input Micro USB (F) mounting version via included |
| Battery/battery pack | |
| Battery: | 2 xMignon (AA) included |
| Frequency band: | UHF 823 - 832 MHz |
| Connector type: | 3.5 mm jack (stereo) mounting version; Mini XLR (M) 3-pin |
| Color: | Black |
| S/N ratio: | >90 dB |
| Range: | 50 m |
| Material: | Plastic |
| Width: | 6,7 cm |
| Height: | 11,2 cm |
| Depth: | 3,0 cm |
| Weight: | 0,20 kg |
| Type: | 16-channel PLL audio transmitter |
| Transmitting power: | <10 mW |
| Modulation: | FM |
| Frequency stability: | 10 ppm |
| Pilot frequency: | 32,768 kHz |
| Microphone input: | 3-pin mini XLR jack (supplies 2.5-3 V) |
| Max. input voltage: | 3.5 V (audio unit), 1V (microphone) |
