Description

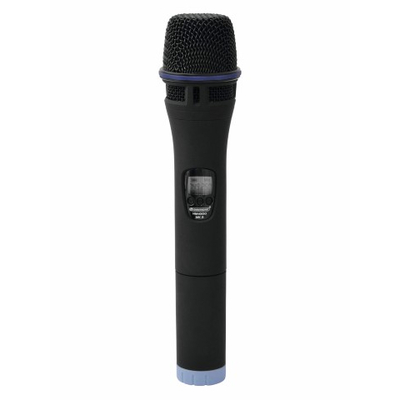

13055092 OMNITRONIC HM-1000 MK2 Wireless microphone
- Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Provides high-quality vocal and voice pickup for stages, discotheques, public speaking, theater etc.
- Matches receiver DR-1000 MK2
- Operation in the low-interference UHF band (740-764 MHz)
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- Operation range 100 meters
- Multichannel operation with up to 16 microphones possible
- LCD for battery status and frequency
- Sensitivity adjustable in 4 steps (0, -10, -20, -30 dB)
- Lock function avoids undesired changes by users, also accidental shutdown
- Aluminum diecast housing

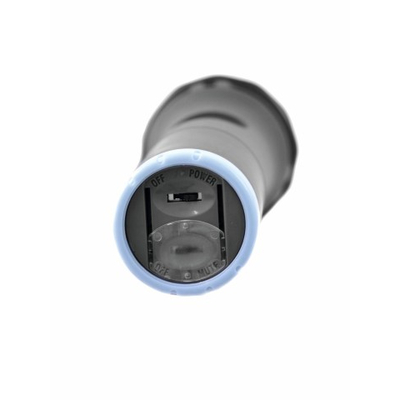

- Operation via 2 x 1.5 V mignon battery (type AA), not included
- Delivery includes microphone case, microphone holder and 8 color rings to distinguish the microphones on stage
- License required in Germany
13061092 OMNITRONIC DR-1000 MK2 Wireless receiver
- Multifrequency wireless receiver, True Diversity
- Multifrequency wireless receiver with UHF pilot tone technology (PLL)
- High-quality true diversity reception
- Two removable antennas (BNC connection)
- Operation in the low-interference UHF band (740-764 MHz)
- 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
- Operation range with line of sight 100 meters
- System expandable to up to 16 receivers with 16 microphones
- LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
- Automatic frequency scan
- Output level control
- Lock function avoids undesired changes by users, also accidental shutdown
- Mute mode when signal is absent or too weak
- 6.3 mm and XLR output

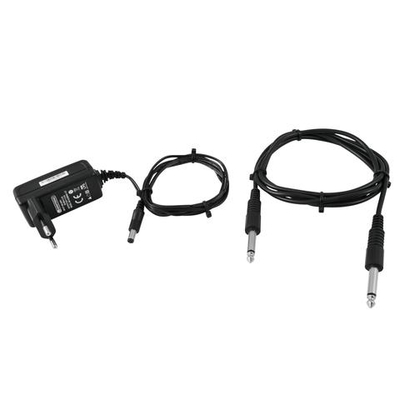

- Operation via supplied power unit
- Rugged metal housing
- Optional mounting frame for rack installation available
- Optional antenna boosters and antenna distributor for easy setup of several receivers
- Optional hand-held microphone, pocket transmitter, lavalier microphone and headset available
- License required in Germany
Technical specifications 13055092 OMNITRONIC HM-1000 MK2 Wireless microphone
Type:
Hand-held dynamic microphone
Directivity pattern:
Cardioid
Carrier frequency:
UHF 740 - 764 MHz
Switching bandwidth:
24 MHz
No. of frequencies:
192
Frequency steps:
125 kHz
Sensitivity:
0, -10, -20, -30 dB
Modulation:
FM
Frequency stability:
±0.005%
Frequency response:
50-16000 Hz
RF power output:
10 mW
Coverage:
100 m (with line-of-sight)
Power supply:
2 x 1.5 V mignon battery (type AA)
Current consumption:
approx. 200 mA
Battery life:
approx. 8 hours
Dimensions:
55 x 245 mm
Weight:
360 g
13061092 OMNITRONIC DR-1000 MK2 Wireless receiver
System:
True diversity, one channel
Carrier frequency:
UHF 740-764 MHz
Switching bandwidth:
24 MHz
No. of frequencies:
192
Frequency steps:
125 kHz
Frequency stability:
± 0.005 %
T.H.D.:
<0.6 % at 1 kHz
S/N ratio:
>105 dB
Dynamic range:
>96 dB
Modulation method:
FM
Coverage:
100 m (with line-of-sight)
AF response:
40-18000 Hz
Audio output:
3-pin XLR, balanced
6.3 mm jack, unbalanced
Power supply:
100-240 V AC, 50/60 Hz ~
via supplied power unit
Power consumption:
6 W
Dimensions:
213 x 150 x 40 mm
Weight:
600 g
