Weatherproof PA wall speaker pair - OD-4T wall speaker 100V white
Description
Weatherproof PA wall speaker pair - OD-4T wall speaker 100V white
- 100 V PA speaker systems with an excellent sound for general applications
- 2-way system with 10 cm woofer (4") and 1.5 cm tweeter (0.5")
- Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
- 100 V transformer with 4 power taps (2 W, 4 W, 8 W and 16 W)
- Power selector switch with 8 ohms operating position

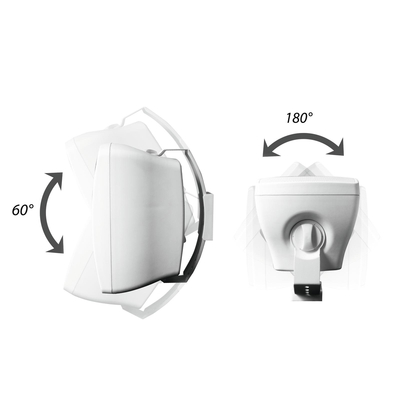

- Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles

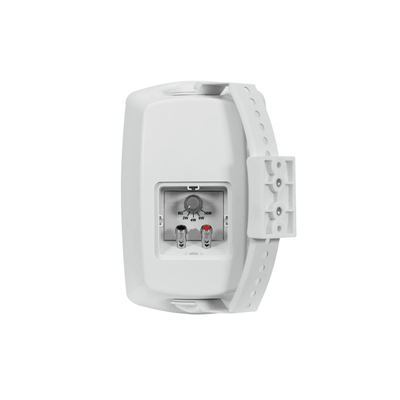

- Connection via pole terminals
- Packed as a pair
- For indoor and outdoor PA applications
Technical specifications
| Input: | 100 V or 8 ohms |
| Components: | 10 cm woofer (4"), 1.5 cm tweeter (0.5") |
| Connection: | pole terminals |
| Sensitivity: | 88 dB |
| Maximum SPL: | 91 dB |
| Dispersion angle: | 170° x 170° |
| Dimensions (L x W x H): | 125 x 125 x 195 mm |
| IP classification: | IP65 |
| Weight: | 3,66 kg |
| Size of woofer: | (4") ca. 10 cm |
| Rated power: | 16 W RMS |
| Program power: | 32 W |
| Frequency range: | 100 - 20000 Hz |
| Height: | 19,5 cm |
| Depth: | 12,5 cm |
| Width: | 12,5 cm |
| Impedance: | 100 V ELA |
