Universal PA wall speaker 100V - OD-22T white
Description
Universal PA wall speaker 100V - OD-22T white
- 100 V PA speaker system for general applications

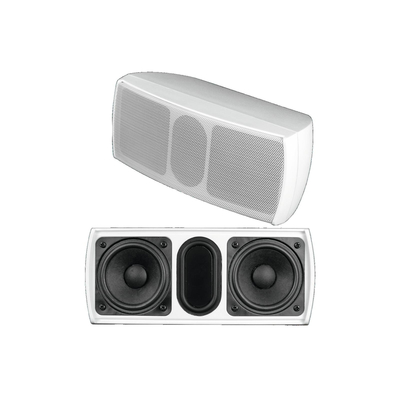

- 2 x 6 cm full-range speaker (2 x 2.5")
- 3.5 x 6 cm passive membrane
- 100 V transformer
- Attractive ABS plastic cabinet (scratch-resistant) with metal grille

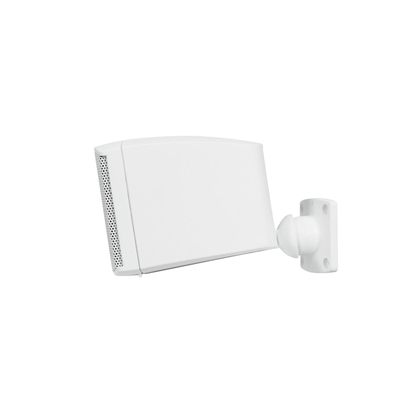

- Durable mounting plate with joint for panning and tilting allows ceiling or wall installation in most varying angles
- Spring clamps
- Ideal for PA applications in restaurants, bars, shops or conferences
Technical specifications
| Input voltage: | 100 V |
| Speaker: | 2 x 6 cm (2 x 2.5") |

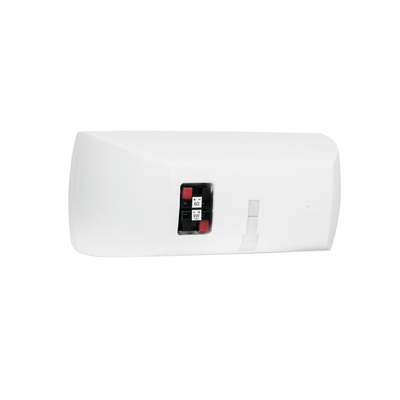

| Connection: | spring clamps with parallel output |
| Sensitivity: | 88 dB |
| Maximum SPL: | 92 dB |
| Dispersion angle: | 60° x 60° |
| Dimensions (H x W x D): | 110 x 209 x 109 mm |
| Weight: | 1 kg |
| Size of woofer: | (2,5") ca. 6 cm |
| Rated power: | 15 Wrms |
| Program power: | 30 W |
| Frequency range: | 120 - 22000 Hz |
| Height: | 11 cm |
| Depth: | 10,9 cm |
| Width: | 20,9 cm |
| Impedance: | 100 V ELA |
