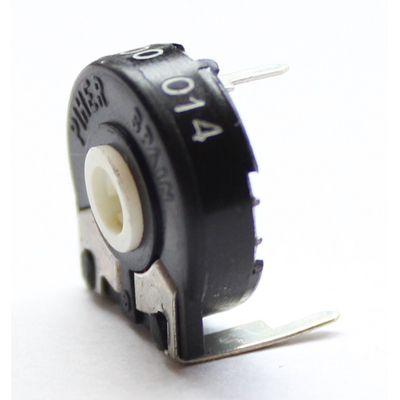

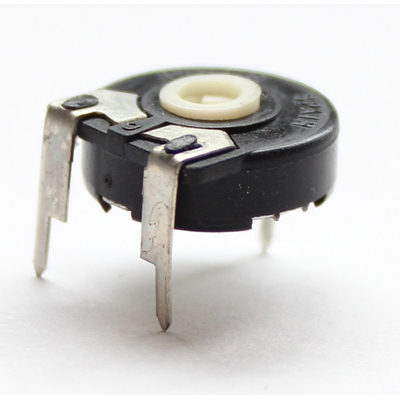

Trimming potentiometer horizontal PT15LV 250R
Description
Horizontal Trimmer Potentiometer PT15LV 250R
- Manufacturer: PIHER
- Potentiometer type: PCB mount
- Potentiometer design: Single-turn, horizontal
- Resistance: 250R
- Power rating: 250 mW
- Tolerance: ±30%
- Characteristic: Linear
- Potentiometer series: PT15LV
- Potentiometer standard: 15 mm
- Mechanical rotation angle: 265 ±5°
- Torque: 0.5...2.5 Ncm
- Max. operating voltage: 250 V
- Operating temperature: -25...70°C
- Mounting: THT
- Terminal pitch: 12.5 x 10 mm
- Resistive element material: Carbon
- Electrical rotation angle: 250 ±20°
- Housing dimensions: Ø15 x 6 mm
