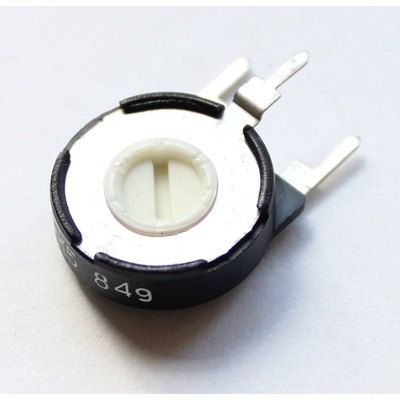

Trimming potentiometer horizontal PT15H 1M
Description
Vertical Trimmer Potentiometer PT15NH 1M
- Manufacturer: PIHER
- Potentiometer type: PCB mount
- Potentiometer design: Single-turn, vertical
- Resistance: 1M?
- Power rating: 250mW
- Tolerance: ±30%
- Characteristic: Linear
- Potentiometer series: PT15NH
- Potentiometer standard: 15mm
- Mechanical rotation angle: 265 ±5°
- Torque: 0.5...2.5Ncm
- Max. operating voltage: 250V
- Operating temperature: -25...70°C
- Mounting: THT
- Terminal pitch: 5x10mm
- Track material: Carbon
- Electrical rotation angle: 250 ±20°
- Housing dimensions: Ø15 x 6mm
