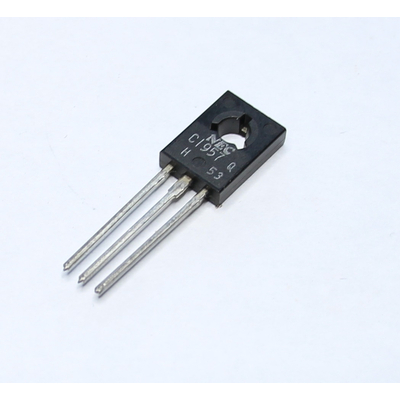

2SC1957 NPN 75V 1A 750mW TO126 - NEC

Item number: 2SC1957

Category: 2SC...

2,45 €

including 19% VAT. , plus shipping (Standard)

In stock!

Shipping time: 2 - 5 workdays

piece

Description

2SC1957 NPN 75V 1A 750mW TO126
    Material of Transistor: Si
    Polarity: NPN
    Maximum Collector Power Dissipation (Pc): 0.75 W
    Maximum Collector-Base Voltage |Vcb|: 75 V
    Maximum Collector-Emitter Voltage |Vce|: 40 V
    Maximum Emitter-Base Voltage |Veb|: 4 V
    Maximum Collector Current |Ic max|: 1 A
    Max. Operating Junction Temperature (Tj): 150 °C
    Transition Frequency (ft): 125 MHz
    Collector Capacitance (Cc): 28 pF
    Forward Current Transfer Ratio (hFE), MIN: 90
    Noise Figure, dB: -
    Package: TO126
