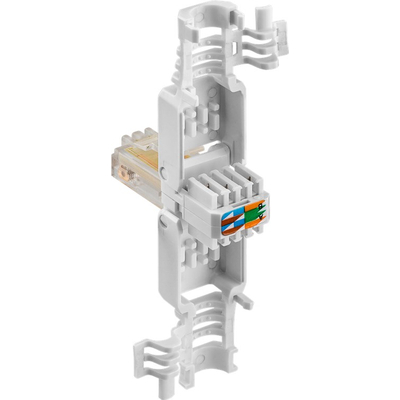

Tool-free RJ45 plug CAT 5e with terminal strip
Description
Tool-free RJ45 plug CAT 5e UTP unshielded with terminal strip
For tool-free LSA assembly, the LAN connector is suitable for round cables with a flexible or rigid inner conductor (AWG 24 - AWG 26). Cable reducer allows you to connect 4 different cable sizes (Ø 5.2 mm/6.0 mm/6.4 mm/7.5 mm) to the network connector. Kink protection on the RJ45 plug optimally protects the Ethernet cable from cable breakage. CAT 5e connector with 3? gold-plated contacts for optimal transmission of electrical or optical signals Tool-free installation by simply squeezing the connector housing Ethernet connector with color-coded cable contacts according to EIA/TIA 568 Unshielded RJ45 connection is
For tool-free LSA assembly, the LAN connector is suitable for round cables with a flexible or rigid inner conductor (AWG 24 - AWG 26). Cable reducer allows you to connect 4 different cable sizes (Ø 5.2 mm/6.0 mm/6.4 mm/7.5 mm) to the network connector. Kink protection on the RJ45 plug optimally protects the Ethernet cable from cable breakage. CAT 5e connector with 3? gold-plated contacts for optimal transmission of electrical or optical signals Tool-free installation by simply squeezing the connector housing Ethernet connector with color-coded cable contacts according to EIA/TIA 568 Unshielded RJ45 connection is
Technical data
- Contact material gold-plated 3?m
RJ45 plug (8P8C) with terminal strip for LSA assembly (tool-free)
Contacting 8 pin
Kink protection yes
Specification CAT 5e
Shielding class UTP
Signal transmission max. Bandwidth 100 MHz
Dimensions Length 53 mm Width 15 mm Height 14.5 mm
for cable diameter (5.2 mm/6 .0mm/6.4mm/7.5mm)
