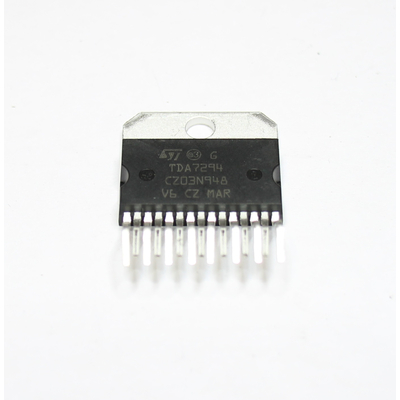

TDA7294 audio amplifier 100W
Description
TDA7294 audio amplifier 100W
- Housing Multiwatt-15
- Model name: amplifier
- Technology: DMOS
- Type: audio
- Version: 100 W with stand-by and muting
- Housing: Multiwatt-15V
- Supply voltage: ± 10? ± 40 VDC
- Output current: 10 A
- Power loss: 50 W
- Temperature range: 0? +70 ° C
- Quiescent current: 30 mA
- Input current, bias: 0.5 µA
- Power bandwidth: 20 kHz
- Output power: 100 W
- Voltage gain, open loop: 80 dB
- Voltage gain, closed loop: 30 dB
- Distortion: 0.1%
- Rate of rise: 10 V / µ sec
- Input noise: 2 µV
- Input impedance: 0.1 M-Ohm
- SVR: 75 dB
