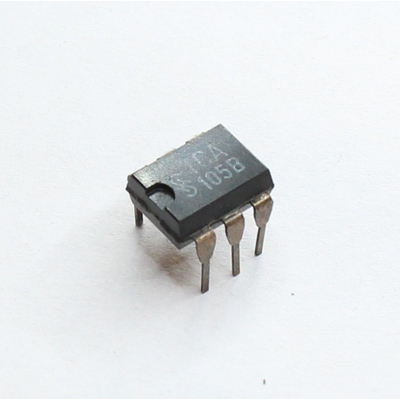

TCA 105B Threshold Comp 5-30V
Description
TCA105B Threshold Switch 30V 50mA DIP6
The TCA105B is a bipolar integrated circuit (IC) from Siemens, primarily used as a threshold switch.
The TCA105B is a bipolar integrated circuit (IC) from Siemens, primarily used as a threshold switch.
- Functionality: The IC includes an oscillator stage, a threshold switch, and two complementary (opposing) output stages. It also features integrated voltage stabilization.
- Operating voltage: Flexible range from 4.5 V to 30 V.
- Output current: Delivers a high output current of up to 50 mA.
- Compatibility: The component is TTL-compatible and can be driven directly by direct current (DC) signals.
- Package type: Typically housed in a P-DIP-6 package (6 pins, Dual In-line Package).
