Sound generator kit with 8 keys - mini organ
Description

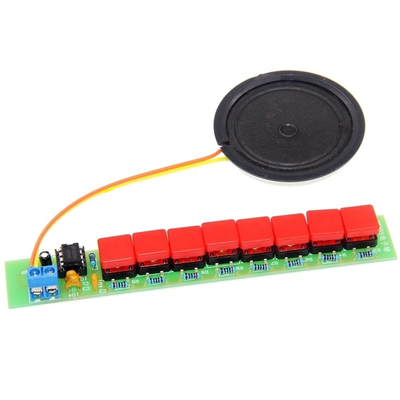

Sound generator kit with 8 keys - mini organ
With the buttons you can generate different frequencies. It is easy to assemble.
With the buttons you can generate different frequencies. It is easy to assemble.
- Operating voltage: 3-12VDC
- Dimensions of the plate: 135 x 22 mm

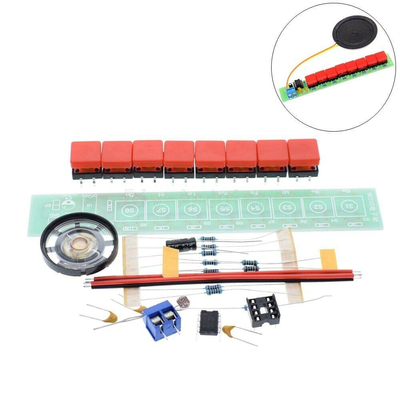

Scope of delivery
|
Component Name |
PCB Marker |
Parameter |
QTY |
|
IC Socket |
U1 |
DIP-8 |
1 |
|
NE555 |
U1 |
DIP-8 |
1 |
|
KF301-2P Connector
|
|
|
1 |
|
|
C4 |
|
1 |
|
Capacitor |
C1-C3
|
|
3 |
|
Metal Film Resistor |
|
1K |
2 |
|
Metal Film Resistor |
|
2K |
6 |
|
Metal Film Resistor |
R5
|
10K |
1 |
|
Cable |
|
5CM |
2 |
|
Button |
S1-S8 |
12*12*7.3mm |
8 |
|
|
|
|
8 |
|
PCB |
|
|
1 |
|
|
SP |
8ohm 0.25W 5cm |
1 |
