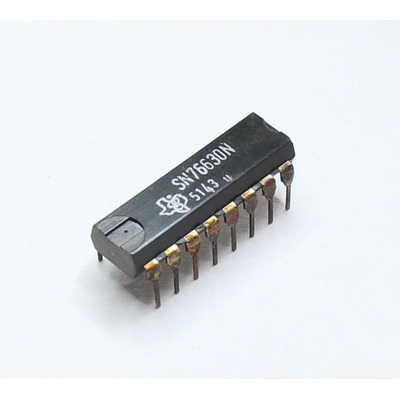

SN76630 Integrated PAL Color Decoder & Synchronous Demodulator DIP16
Description
SN76630 Integrated PAL Color Decoder & Synchronous Demodulator DIP16
- Supply voltage +12 V (permissible range typically approx. 10.8 V to 13.2 V)
- Current consumption approx. 30 mA to 45 mA
- Operating temperature range: 0 °C to +70 °C
- Matrix: Circuit for correct phase switching of the (R-Y) signal from line to line (PAL switch)
- Synchronous demodulators: Two separate demodulator stages for recovering the color difference signals U (B-Y) and V (R-Y) from the modulated color subcarrier (4.43 MHz)
- Blanking circuit: Internal suppression of the color signal during horizontal and vertical blanking intervals (color blanking)
