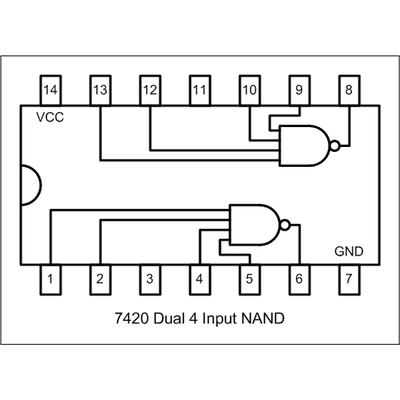

SN74LS20N 2 NAND gates with 4 inputs each DIP14
Description
SN74LS20N 2 NAND gates with 4 inputs each DIP14
- Supply voltage: 4.75 V ~ 5.25 V
- Quick current (max.): 800 µA
- Output current (High/Low): 400 µA, 8 mA
- Input logic level (Low): 0.8 V
- Input logic level (High): 2 V
- Maximum propagation delay at V, max. CL: 15 ns at 5 V, 15 pF
- Operating temperature: 0 °C ~ 70 °C
- Mounting type: Through-hole mounting
- Manufacturer housing: 14-PDIP
- Housing: 14-DIP
- Contacts may be pending
