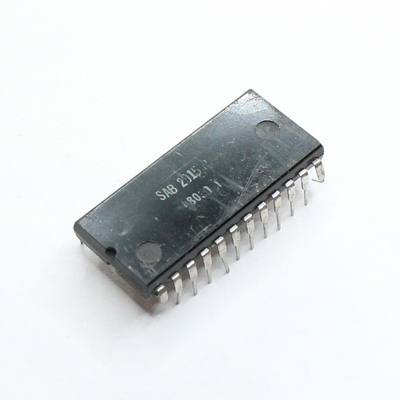

SAB2015 programmable memory (RAM)
Description
SAB2015 Programmable Memory (RAM) and Control Circuit for the SAB1024 Tuning Circuit
The SAB 2015 (often SAB2015P) is a CMOS integrated circuit (IC) developed in the late 1970s and 1980s by manufacturers such as Philips/Signetics and Siemens for consumer electronics. Technical Features & Function
The SAB 2015 (often SAB2015P) is a CMOS integrated circuit (IC) developed in the late 1970s and 1980s by manufacturers such as Philips/Signetics and Siemens for consumer electronics. Technical Features & Function
- Function: Control for station scanning (station searching) and integrated RAM memory for station presets/tuning systems in television sets (TV).
- Package Type: 24-pin DIP package (DIP-24, wide version), suitable for through-hole technology (THT) mounting.
- Technology: CMOS (compatible with digital tuning systems/DICS in older radio and television receivers).
Control circuit for the SAB1024 tuning circuit
