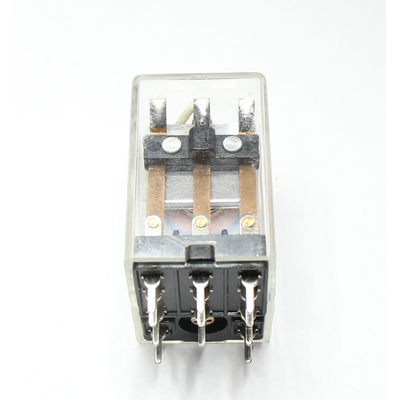

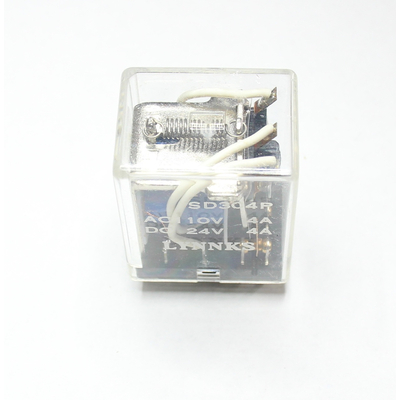

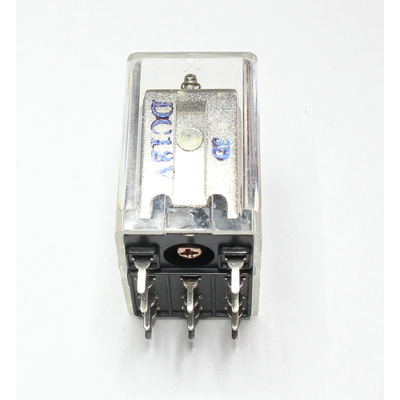

Relay SD304P 12V 4A 3 x um - LYNNKS
Description
Relay SD304P 12V 4A 3 x around - LYNNKS
- Manufacturer LYNNKS
Relay type electromagnetic
Contact configuration 4PDT
Nominal coil voltage 12VDC
Contact rating AC @R (with ohmic load) 4A / 110VAC
Contact rating DC @R (with ohmic load) 4A / 24VDC
Relay design industry
Assembly THT
Relay series --
Operating temperature -40...85°C External
Dimensions 20.6 x 27, 4 x 33.4mm
Coil resistance 140 Ohm
Coil current 60mA
Contact material AgNi
Power consumption of the coil 0.7W
Outputs pint
