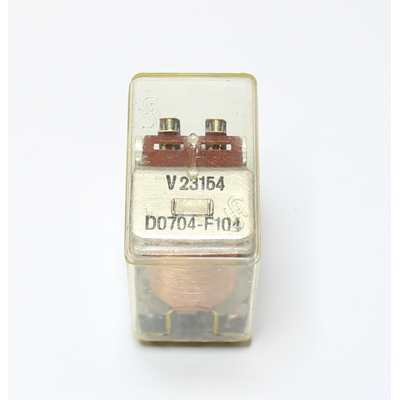

Relay 72VDC 5A DPDT - V23154-D0704-F104

Item number: V23154-D0704-F104

Category: Other relays

17,45 €

including 19% VAT. , (Standard)

Currently unavailable or sold out!

Description

Relay 72VDC 5A DPDT - V23154-D0704-F104
  • Manufacturer: Siemens
  • Relay type: Electromagnetic
  • Contact configuration: DPDT
  • Nominal coil voltage: 72VDC
  • Minimum coil voltage: 48.6VDC
  • Maximum coil voltage: 114VDC
  • AC contact rating (resistive load): 5A / 125VAC
  • DC contact rating (resistive load): 5A / 150VDC
  • Max. contact current: 5A
  • Max. switching voltage: 150V
  • Mounting: Socket or solder
  • Coil resistance: 7600 Ohm
  • External dimensions: 30 x 30 x 19mm
  • Permissible ambient temperature: -40 to +70°C
