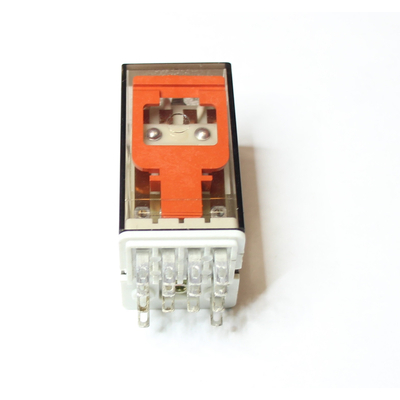

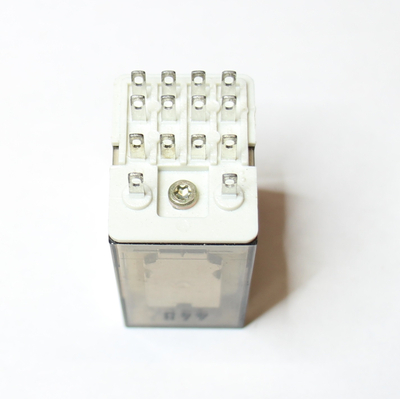

Relay 24VDC 5A 4 x um - RA 400 024 SCHRACK
Description
Relay 24VDC 5A 4 x um - RA 400 024 SCHRACK
- Manufacturer SCHRACK
- Model - RA 400 024
- Dimensions (W / H / L) - 27 x 20 x 37 mm
- Nominal coil voltage - 24 VDC
- Contact voltage - 250 VAC
- Contact load capacity - 5 A
- Contact configuration - 4PDT - 4 x on/(on)
- number of contacts - 14
- fixing pin 2.4 mm or socket
- contact resistance - 50 mOhm
- body material - plastic
- Socket - PYF-14A.
