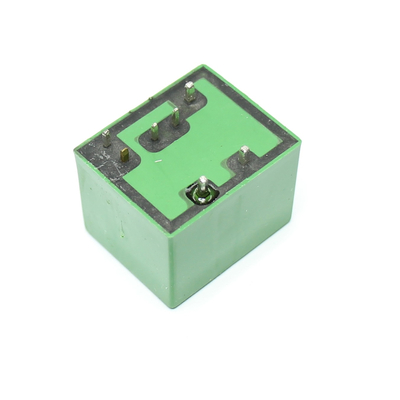

Relay 12VDC 20A 1xon/(on) - FRC7C-S
Description
Relay 12VDC 20A 1xon/(on) - FRC7C-S
- Manufacturer FORWARD INDUSTRIAL CO.
- Type of relay electromagnetic
- Contacts configuration SPDT
- Rated coil voltage 12V DC
- Contact current max. 25A
- DC contacts rating @R(at resistive load) 20A / 14V DC
- Relay variant automotive
- Coil resistance 96?
- Operating temperature -40...85°C
- Body dimensions 15.5x23x26mm
- Mounting socket
- Coil power consumption 1.5W
- Relay series FRC7
- Contact resistance 50m?
- Leads 4,8x0,8mm connectors, 6,4x0,8mm connectors
- Mechanical durability 10000000 cycles
- Weight 18.5g
- Coil current 124mA
- Operate time 10ms
- Release time 7ms
- Electrical life 100000 cycles
- Switched voltage max. 14V DC
