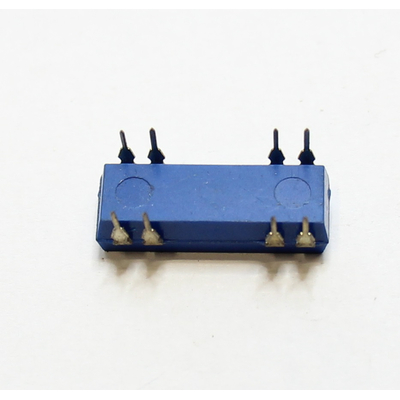

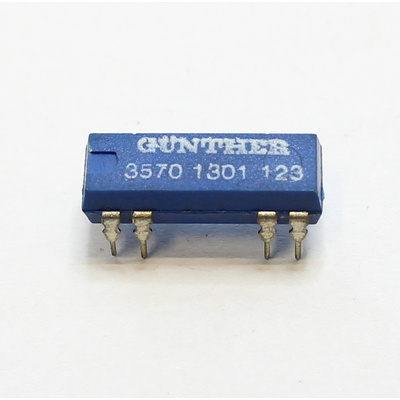

Reed relay 12VDC 1 x on - 3570-1301-123
Description
Reed relay 12VDC 1 x on - 3570-1301-123
- Manufacturer: Günther
- Manufacturer series: 3570
- Manufacturer part number: 3570 1301 123
- Contact type: 1 NO contact
- Coil voltage (DC): 12 VDC
- Coil resistance: 500 Ohm
- Switching voltage (DC): 100 V
- Switching voltage (AC): 100 V
- Switching current: 0.5 A
- Power rating: 10 W
- Connection: Solder terminal
- Grid spacing: 2.54 mm
- Country of origin: Taiwan
- Customs tariff number: 85364110
