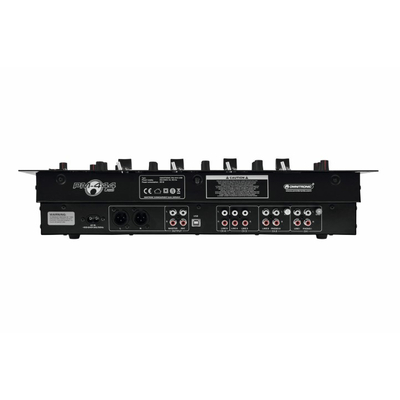

Professional 4 channel DJ mixer with USB interface

Item number: 6010006823

Category: Mixers


199,00 €

including 19% VAT. , plus shipping (Standard)

From piece Price per unit
2 193,03 €
Available

Shipping time: 2 - 5 workdays

piece


Description

Professional 4 channel DJ mixer with USB interface

  • Integrated USB audio interface for digital mixing of audio files from PC and Mac
  • Full duplex USB port allows simultaneous recording and playback
  • 4 channels with gain control, 2-band equalizer, cue button and channel fader
  • 1 DJ microphone channel with talkover selector and 2-band equalizer
  • Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output
  • Replaceable crossfader for crossfading between input channels with assignment switches
  • Master channel with level control and 6-digit stereo LED level meter
  • Inputs: 1 x USB, 5 x line (stereo RCA), 2 x phono (stereo RCA), 1 x microphone (XLR/jack)
  • Outputs: master (stereo XLR/RCA), record (stereo RCA), headphones (6.3 mm jack)
  • Rack installation, 4 U

Technical specifikations:

Power supply: 100-240 V AC, 50/60 Hz ~
Power consumption: 25 W
USB port: 2.0, type B
Inputs:
DJ MIC (front): combined 3-pin XLR/6.3 mm jack (bal.)
Impedance: 1 kohms
Minimum input voltage: 10 mV RMS
LINE 1-4: stereo RCA
Impedance: 1 kohms
Minimum input voltage: 300 mV RMS
PHONO 1,2: stereo RCA
Impedance: 1 kohms
Minimum input voltage: 3 mV RMS
Outputs:
MASTER: stereo RCA, XLR L/R (bal.)
Output voltage: 3 V RMS
REC: stereo RCA
Output voltage: 7 V RMS
Headphones: 6.3 mm stereo jack (>16 ohms)
Tone control (DJ MIC):
1 x High: -30 dB to +12 dB/ 10 kHz, ±1 dB
1 x Low: -30 dB to +12 dB/ 100 Hz, ±1 dB
Tone control (ch 1-4):
1 x High: -30 dB to +12 dB/ 40 kHz, ±1 dB
1 x Low: -30 dB to +12 dB/ 40 kHz, ±1 dB
S/N ratio: 60 dB
Frequency range: 20-20,000 Hz
Dimensions (WxHxD): 483 x 177 x 101 mm (19", 4 U)
Weight: 2.9 kg
Shipping weight: 3.50 kg
