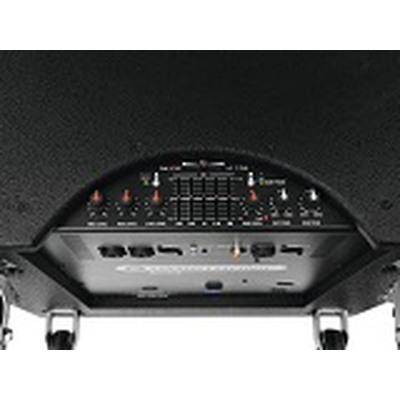

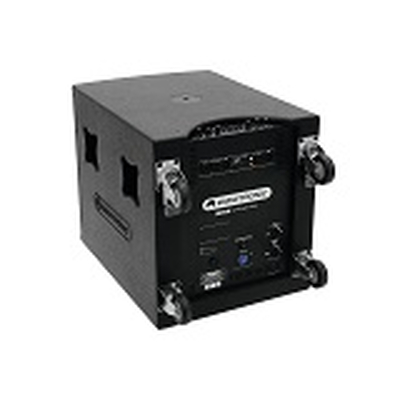

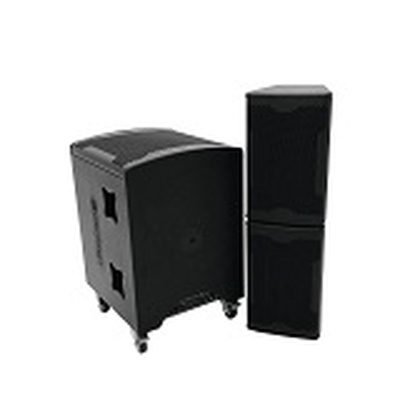

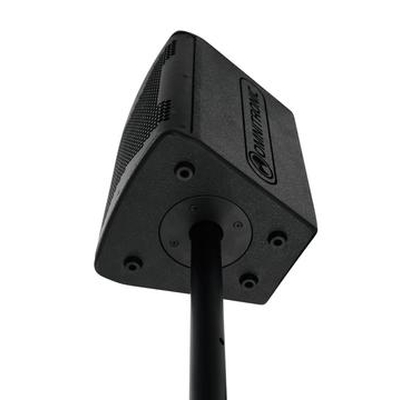

Powerful active compact PA system 1400 Wmax AS-800
Description
- Mobile subwoofer/satellite system with class D circuitry
- Provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, small bands and mobile discos
- Several active systems can be used to set up large PA systems
- 38 cm subwoofer in bassreflex cabinet provides powerful, dry bass
- Tops with 20 cm bass-midrange speakers and 8 cm titanium driver system
- Balanced inputs via combo jacks (XLR/6.3 mm) and XLR parallel outputs
- Microphone input (combo XLR/6.3 mm jack)
- Aux input (3.5 mm jack/RCA), ideal for portable music players (e.g. iPod)
- Adjustable volume balance between satellites
- Adjustable crossover frequency for subwoofer and satellites
- 5-band equalizer for fine-tuned sound of the master signal
- Stereo/mono selection
- Phase switchable for subwoofer
- Groundlift switch against humming
- MDF enclosure with scratch-resistant lacquer surface, impact-resistant steel grille and flange for speaker distance tube
- 4 castors, 2 of which with locking brakes
- Complete protection set against short-circuit, overheat, overload and overcurrent
- PowerCon input, power cable included
- Delivery includes two speaker cables
Tecnical specifications:
| Power supply: | 230 V AC, 50 Hz ~ |
| Power consumption (max.): | 900 W |
| Power output sine: | |
| Subwoofer: | 500 W RMS |
| Satellite speakers: | 2 x 150 W RMS |
| Components: | |
| Subwoofer: | 38 cm woofer (15") |
| Satellite speakers: | 2 x 20 cm woofer (8"), 2 x 8 cm titanium tweeter (3.2") |
| Sensitivity: | |
| Subwoofer: | 96 dB (1 W, 1 m) |
| Satellite speakers: | 94 dB (1 W, 1 m) |
| Max. SPL: | |
| Subwoofer: | 123 dB (1 m) |
| Satellite speakers: | 114 dB (1 m) |
| Frequency range: | |
| Subwoofer: | 35 - 140 Hz |
| Satellite speakers: | 140 Hz - 20 kHz |
| Inputs: | |
| Line: | combination XLR/6.3 mm jack L/R |
| Aux: | 3.5 mm jack/stereo RCA |
| Mic: | combination XLR/6.3 mm jack |
| Outputs: | |
| Line: | XLR L/R (feed-through output) |
| Speaker: | 2 x Speaker, 8 ohms |
| Protection circuits: | Short-circuit, overheat, overload, overcurrent |
| Dimensions (LxWxH): | |
| Subwoofer: | 702 x 450 x 495 mm |
| Satellite speakers: | 261 x 273 x 438 mm |
| Total weight: | 60 kg |
| Shipping weight: | 57.85 kg |
