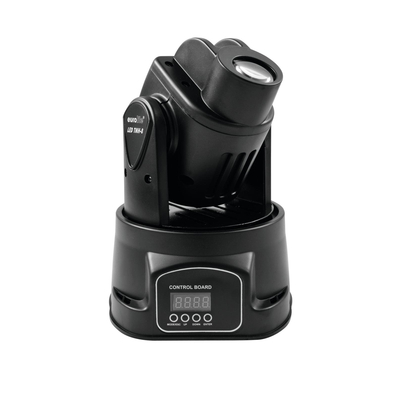

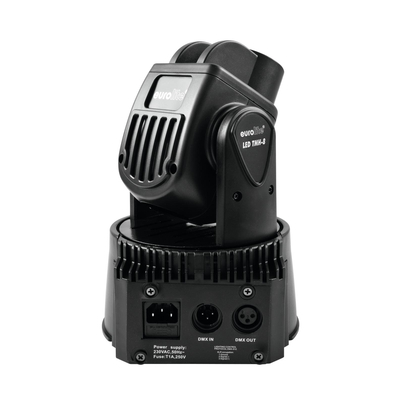

Powerful QCL Moving Head with a 10W RGBW LED - LED TMH-8 Moving-Head Spot
Description
Powerful QCL Moving Head with a 10W RGBW LED - LED TMH-8 Moving-Head Spot
- Equipped with a 10 W CREE quadcolor LED with RGBW colors
- Compact lightweight
- 14 or 5 DMX channels selectable for numerous applications
- Positioning within 540° PAN and 230° TILT
- Stepless RGBW color mixture
- Color-macro-function for an easy selection of possible color-combinations
- Gobo-wheel with 9 static gobos plus open
- With gobo-shake function
- Rainbow-effect with adjustable speed
- Programmable color-change speed and strobe effect
- Strobe effect with 1-10 flashes per second
- Exact positioning via 16 bit PAN/TILT movement resolution
- PAN-angle switchable between 540°, 360° and 180° (in sound and auto mode)
- TILT-angle switchable between 230°, 180° and 90° (in sound and auto mode)
- DMX-controlled operation or stand-alone operation with Master/Slave function
- 8 motion macros can be called up via DMX controller
- Sound-control via built-in microphone
- Addressing via control panel with 4-digit LED display
- DMX control via every standard DMX controller
- Color generation: RGBW
Technical specifications:
| Power supply: | 230 V AC, 50 Hz |
| DMX channels: | 14/5 |
| DMX connection: | 3-pin XLR |
| Flash-rate: | 10 Hz |
| Sound-control: | via built-in microphone |
| LED number: | 1 |
| Type of LED: | 10 W QCL |
| Beam angle: | 13° |
| Static gobo-wheel: | 9 gobos and open |
| Maximum PAN-movement: | 540° |
| Maximum TILT-movement: | 230° |
| Dimensions (L x W x H): | 170 x 175 x 245 mm |
| Weight: | 3 kg |
| Power consumption: | 35 W |
| Beam angle: | 13 ° |
| Lamp type: | LED lamp |
| Cooling fan: | Yes |
| IP classification: | IP20 |
| Height: | 24,5 cm |
| Depths: | 17,5 cm |
| Width: | 17 cm |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
