Potentiometer shaft mono 10K log - VRA-100M10
Description
Potentiometer shaft mono 10K log - VRA-100M10

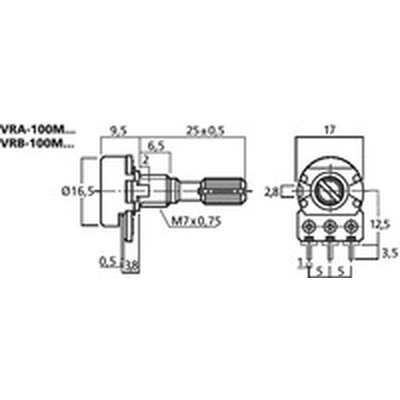

With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
- resistance 10K
- Char.log.
- Resilience 0.1W
- insulation resistance of < 100 MOhms / 500 VDC
- Test voltage 500 V AC / 1 min.
- accuracy ± 3 dB, 0 / -40 dB
- rotation angle 300 ° ± 5 °
- Hold no
