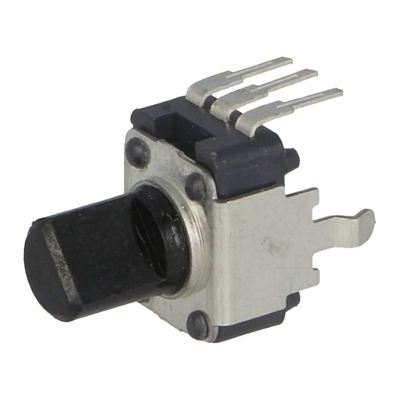

Potentiometer shaft mono 10K log
Description
Axial mono potentiometer 10K log
- Manufacturer: ALPS
- Potentiometer type: axial
- Potentiometer type: single-turn, vertical
- Resistance: 10 KOhm
- Tolerance ±20%
- Shaft diameter 6mm
- Shaft length 7.4mm
- Characteristics logarithmic
- Housing dimensions 9.8 x 11 x 6.8mm
- Outputs PCB mounting
- Potentiometer properties mono
- Shaft surface D-section
- Mechanical angle of rotation 300°
- Output pitch 2.54mm
- Shaft material plastic
- Notch depth 1.5mm
