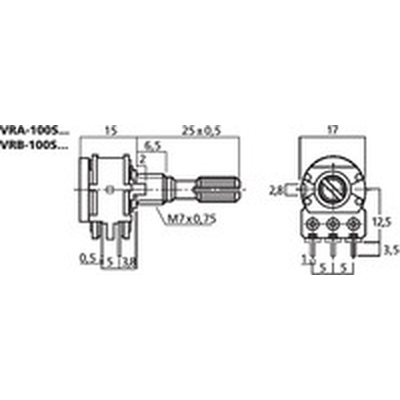

Potentiometer axial stereo 50K log - VRA-100S50
Description
Potentiometer axial stereo 50K log - VRA-100S50
with slotted 6mm shaft, for 18-tooth push-on knobs, with nut mounting and print-board lugs.
Technical data
with slotted 6mm shaft, for 18-tooth push-on knobs, with nut mounting and print-board lugs.
Technical data
- Resistance 2 x 50 kO
- Char.log.
- load capacity 0.1 W
- Insulation resistance & lt; 100 MOhms / 500 VDC
- Preload 500 V~ / 1 min.
- Synchronization ± 3 dB, 0 / -40 dB
- rotation angle 300 ° ± 5 °
- detent no
