Potentiometer axial stereo 500K log - VRA-100S500
Description
Potentiometer axial stereo 500K log - VRA-100S500

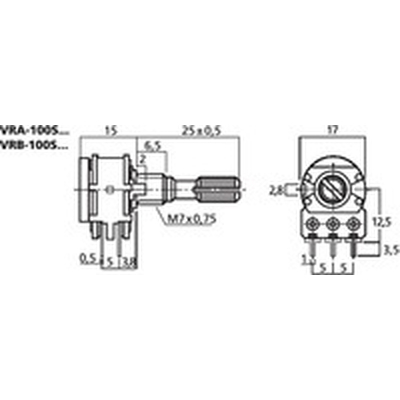

with slotted 6mm shaft, for 18-tooth push-on knobs, with nut mounting and print-board lugs.
Technical data
with slotted 6mm shaft, for 18-tooth push-on knobs, with nut mounting and print-board lugs.
Technical data
- resistance 2 x 500 K.
- Char.log.
- load capacity 0.1 W
- Insulation resistance & lt; 100 MOhm / 500 VDC
- Preload 500 V~ / 1 min.
- Synchronization ± 3 dB, 0 / -40 dB
- rotation angle 300 ° ± 5 ° detent no
