Potentiometer axial mono 1K lin - VRB-100M1
Description
Potentiometer axial mono 1K lin - VRB-100M1

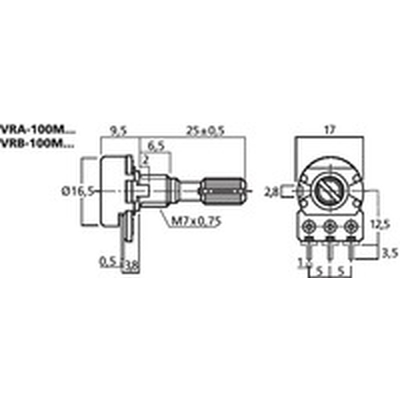

With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
- resistance 1K
- Char.lin.
- Resilience 0.1W
- insulation resistance of < 100 MOhms / 500VDC
- Test voltage 500 V AC / 1 min.
- accuracy ± 3 dB, 0 / -40 dB
- rotation angle 300 ° ± 5 °
- Hold No
