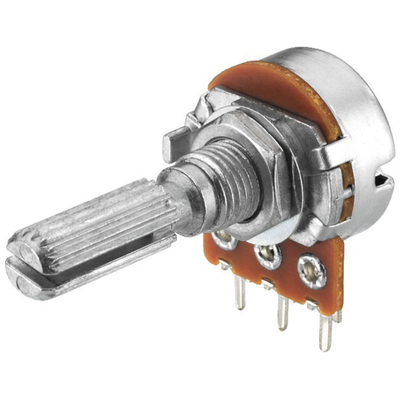

Potentiometer axial mono 100K lin - VRB-100M100
Description
Potentiometer axial mono 100K lin - VRB-100M100
With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
With slotted 6mm shaft, for 18-tooth shell buttons, with nut fixing and print-board solder terminals.
- resistance 100K
- Char.lin.
- Resilience 0.1W
- insulation resistance of < 100MOhms / 500VDC
- Test voltage 500VAC / 1 min.
- accuracy ± 3 dB, 0 / -40 dB
- rotation angle 300 ° ± 5 °
- Hold No
