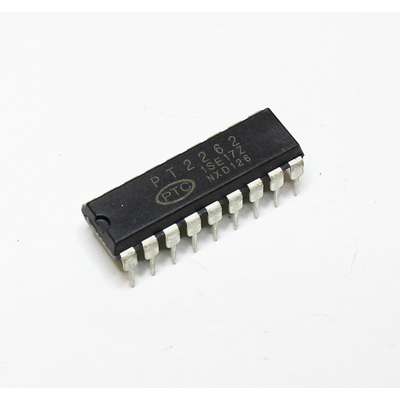

PT2262 remote control encoder DIP18
Description
PT2262 remote control encoder DIP18
PT2262 is a remote control encoder combined with PT2272 that uses CMOS technology. It encodes data and address pins into a serial encoded waveform suitable for RF or IR Modulation. PT2262 has a maximum of 12 bit tri-state address pins and offers up to 531,441 (or 312) address codes; This drastically reduces any code collision and Ways to scan unauthorized codes scanning possibilities.
PT2262 is a remote control encoder combined with PT2272 that uses CMOS technology. It encodes data and address pins into a serial encoded waveform suitable for RF or IR Modulation. PT2262 has a maximum of 12 bit tri-state address pins and offers up to 531,441 (or 312) address codes; This drastically reduces any code collision and Ways to scan unauthorized codes scanning possibilities.
- CMOS Technology
- Low Power Consumption
- Very High Noise Immunity
- Up to 12 Tri-State Code Address Pins
- Up to 6 Data Pins
- Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts
- Single Resistor Oscillator
- Latch or Momentary Output Type
- Available in DIP
