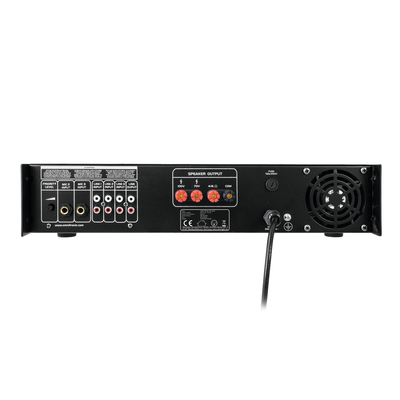

PA mixing amplifier with MP3 player and IR remote control 180 Wrms - MP-180P
Description
PA mixing amplifier with MP3 player and IR remote control 180 Wrms - MP-180P
Technical specifications:
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
- MP3 player with IR remote control and LCD with blue backlight
- SD card slot and USB input
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Rack installation
- Control: IR remote control
- Housing design: (19") 48.3 cm rack installation 2 U
Remote control
- Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Technical specifications:
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 360,00 W |
| output: | 180 W RMS |
| Power connection: | Fixed Power supply cord with safety plug |
| Frequency range: | 80 - 14000 Hz |
| Impedance: | 100 V ELA |
| Control: | IR remote control |
| Audio player: | USB + SD |
| S/N ratio: | >75 dB Microphone; >85 dB line |
| Mode of operation: | Class AB |
| Format: | MP3 |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48,3 cm |
| Height: | 8,9 cm |
| Depth: | 40 cm |
| Weight: | 9,80 kg |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Mic input: | 5 mV, 600 ohms |
| Line input: | 300 mV, 10 kohms |
| Output connectors: | Screw connectors |
| Playback format audio player: | MP3 |
| Available storage media: | USB devices and SD(HC) cards up to 32 GB |
| File system: | FAT32 |
| Number of files: | max. 999 |
