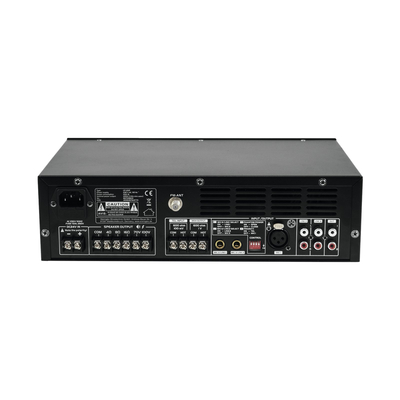

PA mixing amplifier with MP3 player and Bluetooth 120 Wrms - CP-120P
Description
PA mixing amplifier with MP3 player and Bluetooth 120 Wrms - CP-120P
Omnitronic CP series - very compact mixers for public address systems (100 V)
The PA mono mixing amplifiers of the CP series have been specially designed for the use in 100 V PA systems. They supply an output power of 30, 60 or 120 watts. PA speakers with 70 V and 100 V audio transformers or low-impedance speakers can be connected.
It is possible to connect microphones and units with line level to the six inputs which can be mixed with each other. Microphone channel 1 is equipped with a priority function which reduces the volume of the other signal sources in case of an announcement. Additional input and output terminals connect a telephone system allowing you to make important announcements and to play music for people waiting to be answered.
The PA amplifiers are equipped with an audio player with Bluetooth receiver, USB port, SD card slot, and FM tuner with auto scan. An IR remote control is included for convenient control of the audio player.
Technical Dates:
Omnitronic CP series - very compact mixers for public address systems (100 V)
The PA mono mixing amplifiers of the CP series have been specially designed for the use in 100 V PA systems. They supply an output power of 30, 60 or 120 watts. PA speakers with 70 V and 100 V audio transformers or low-impedance speakers can be connected.
It is possible to connect microphones and units with line level to the six inputs which can be mixed with each other. Microphone channel 1 is equipped with a priority function which reduces the volume of the other signal sources in case of an announcement. Additional input and output terminals connect a telephone system allowing you to make important announcements and to play music for people waiting to be answered.
The PA amplifiers are equipped with an audio player with Bluetooth receiver, USB port, SD card slot, and FM tuner with auto scan. An IR remote control is included for convenient control of the audio player.
Features
- Compact PA mono mixing amplifier 1 x 30 W (CP-30P), 1 x 60 W (CP-60P), 1 x 120 W (CP-120P)
- Built-in audio player with Bluetooth receiver and IR remote control
- Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- SD card slot and USB input
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 (XLR) with phantom power and priority circuit
- Mic 2 and 3 (jack) switchable mic/line
- 2 aux inputs (RCA) with separate level controls
- 1 telephone input with priority and MOH circuit (Music on Hold) for telephone systems with audio output
- 1 line output (RCA)
- Treble and bass and master controls for the output signal
- 4-fold LED level display
- Protection circuits with LED indication: overload, short circuit, clip limiter, overheat
- Compact desktop console
Audio player
- Control: Bluetooth built-in; IR remote control included
Remote control
- Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Technical Dates:
| Power supply: | 230 V AC, 50 Hz |
| or 24 V DC |
|
| Power consumption: | 175 W |
| output: | 120 W RMS |

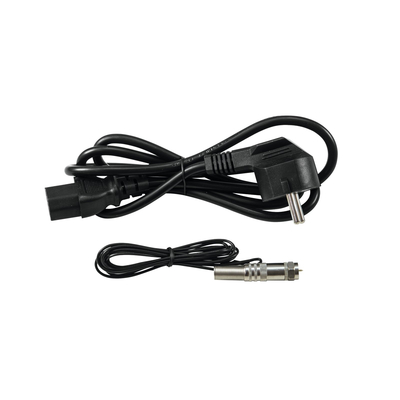

| Power connection: | Mains input IEC connector (M) mounting version via Power supply cord with safety plug (provided) |
| Mains input screw terminal via possible | |
| Frequency range: | 60 - 15000 Hz |
| Impedance: | 4 Ohm; 8 Ohm; 16 Ohm; 100 V ELA |
| S/N ratio: | >75 dB Microphone; >85 dB line |
| Mode of operation: | Class D |
| Material: | Metal |
| Width: | 32 cm |
| Height: | 9,3 cm |
| Depth: | 23,8 cm |
| Weight: | 5,0 kg |
| Audio player | |
| Frequency band: | 2.4 GHz |
| Control: | Bluetooth built-in |
| IR remote control included | |
| Audio player: | USB + SD + Bluetooth + FM Radio |
| Format: | MP3 |
| Range: | 10 m Bluetooth |
| Remote control | |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack built-in |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Outputs: | |
| Line: | 0.775 V (RCA) |
| Inputs: | |
| Mic 1: | 5-8 mV/600 ohms (XLR) |
| Mic 2, 3: | 5-8 mV/600 ohms (6.3 mm jack, unbal.) |
| Line 1, 2: | 150-470 mV, 10 ohms (RCA) |
| Tel., MOH: | screw connectors |
| THD: | <0.5 % |
