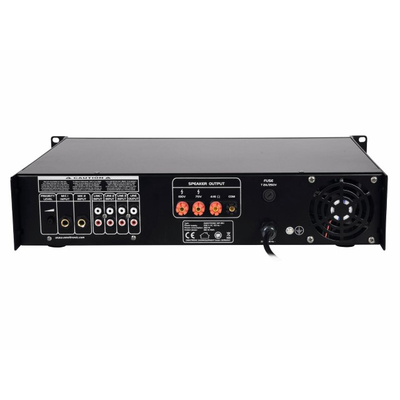

PA mixing amplifier 180 Wrms - MP-180
Description
PA mixing amplifier 180 Wrms - MP-180
High reliability with a maximum of flexibility
The Omnitronic MP-180 ELA mixing amplifier is your reliable partner when working with ELA sound systems. Thanks to its 19" format, it is ideally suited for both mobile and fixed installations.
Outputs for ELA loudspeakers with 70 V and 100 V audio transformers or 4-16 ohms loudspeakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixing console) to the line output. With 6 mixable inputs you always stay flexible. Connect up to 3 microphones and 3 line level devices.
Announcements are a priority
The microphone input 3 on the front panel offers an adjustable priority circuit. It enables you to make important announcements with automatic, continuously adjustable level reduction of all signals. Use the gong to additionally point out your announcement.
Protective features
A fan protects the interior of your MP-180 from overheating. In addition to a switch-on delay, it has overvoltage and short-circuit protection circuits. In these cases, your speakers are electrically isolated from the amplifier. The FAULT LED lights up then and both the MP-180 and your speakers are protected against damage.
Technical specifications:
High reliability with a maximum of flexibility
The Omnitronic MP-180 ELA mixing amplifier is your reliable partner when working with ELA sound systems. Thanks to its 19" format, it is ideally suited for both mobile and fixed installations.
Outputs for ELA loudspeakers with 70 V and 100 V audio transformers or 4-16 ohms loudspeakers leave nothing to be desired. In addition, you can also connect a device with line level (e.g. mixing console) to the line output. With 6 mixable inputs you always stay flexible. Connect up to 3 microphones and 3 line level devices.
Announcements are a priority
The microphone input 3 on the front panel offers an adjustable priority circuit. It enables you to make important announcements with automatic, continuously adjustable level reduction of all signals. Use the gong to additionally point out your announcement.
Protective features
A fan protects the interior of your MP-180 from overheating. In addition to a switch-on delay, it has overvoltage and short-circuit protection circuits. In these cases, your speakers are electrically isolated from the amplifier. The FAULT LED lights up then and both the MP-180 and your speakers are protected against damage.
Features:
- PA outputs for 70 V or 100 V PA speakers or for low-impedance speakers (4-16 ohms)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Fan-cooled
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- Housing design: (19") 48.3 cm rack installation 2 U
Technical specifications:
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 360,00 W |
| output: | max. 180 W |
| 180 W RMS | |
| Power connection: | Fixed Power supply cord with safety plug |
| Frequency range: | 80 - 14000 Hz |
| Impedance: | 100 V ELA |
| S/N ratio: | >75 dB Microphone; >85 dB line |
| Mode of operation: | Class AB |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48,3 cm |
| Height: | 8,9 cm |
| Depth: | 40 cm |
| Weight: | 9,80 kg |
| Output type: | 70 V, 100 V or 4-16 ohms |
| Mic input: | 5 mV, 600 ohms |
| Line input: | 300 mV, 10 kohms |
| Output connectors: | Screw connectors |
