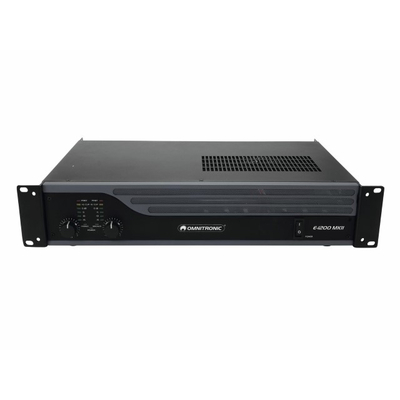

PA amplifier with integrated limiter 1200 Wmax - E-1200 MK2

PA amplifier with integrated limiter 1200 Wmax - E-1200 MK2

Item number: x10451067

349,00 €

including 19% VAT. , (Standard)

From piece	Price per unit
2	338,53 €

Available

Shipping time: 2 - 5 workdays

PA amplifier with integrated limiter 1200 Wmax - E-1200 MK2

Class AB circuitry
3 operating modes can be selected (stereo, parallel bridged)
Limiter, switchable
Speaker switch-on delay
2 level controls
Each channel with LED for activated protective circuit (protect) and 7-fold output meter with clip LED
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients
Groundlift switch against humming
Selectable input sensitivity
Fan cooling

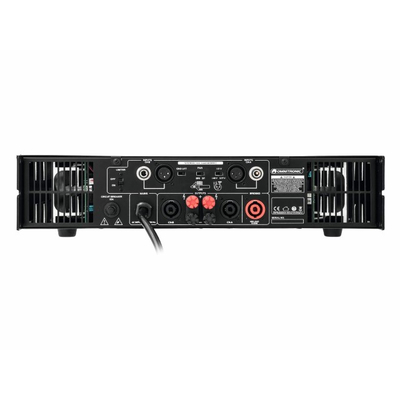

Speaker outputs via lockable Speaker jacks and pairs of screw terminals
Signal inputs via XLR or 6.3 mm mounting jacks
Additional Speaker plug for 8-ohm bridge operation
8-ohm bridge operation via screw terminals or additional Speaker plug
Rack installation

Tecnical specifications:

Power supply:	230 V AC, 50 Hz ~
Power consumption:	750 W (1/8 power)
Power output sine:
Stereo 4 ohms	2 x 600 W
Stereo 8 ohms	2 x 400 W
8 ohms bridged	1 x 1200 W
Frequency range:	10-50000 Hz, ± 1.5 dB
Damping factor:	>250
Distortion factor:	0.1 %
Slew rate:	30 V/µsec
S/N ratio:	>90 dB
Input sensitivity:	0.77 V/1.0 V/1.4 V
Input impedance:	20 kohms
Input voltage:	max. 21 dBV/9V
Input connectors:	2 x XLR, 6.3 mm jack
Output connectors:	2 x Speaker, 1 x Speaker (bridge), 2 x pairs of screw terminals
Control elements: power switch, level control per channel, mode switch, limiter	switch, groundlift switch, input sensitivity switch
Protection circuits: short-circuit, overheat, DC voltage, power on/off transients,	softstart
Construction:	steel chassis with aluminum front panel
Dimensions (DxWxH):	410 x 482 x 103 mm (19", 2 U)
Weight:	12.6 kg
Shipping weight:	14.06 kg
