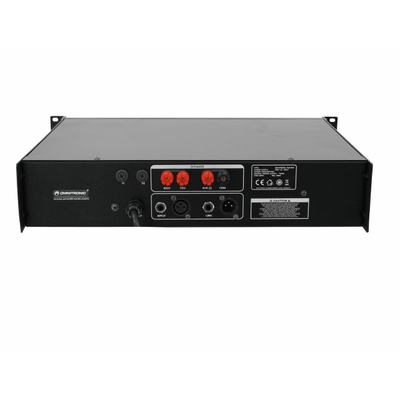

PA amplifier 350 Wrms - PAP-350
Description
PA amplifier 350 Wrms - PAP-350
- 1 line input (optionally XLR or 6.3 mm jack)
- 1 feed-through output (optionally XLR or 6.3 mm jack)
- 70 V, 100 V or 4-16 ohms operation
- Master control
- LED indicators for power, signal, clip and fault
- Protective circuits: over load, short circuit, turn-on delay, over heating, DC offset protection
- Load detection and power control
- Rack installation
Technical specification:
| Power supply: | 230 V AC, 50 Hz |
| output: | max. 350 W |
| 350 W RMS | |
| Power connection: | Fixed Power supply cord with safety plug |
| Frequency range: | 80 - 16000 Hz |
| Impedance: | 100 V ELA |
| S/N ratio: | >90 dB line |
| Circuitry: | Class AB |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Width: | 48,3 cm |
| Height: | 8,9 cm |
| Depth: | 38,5 cm |
| Weight: | 13,50 kg |
| Output power: | 350 W RMS |
| Output current: | 5 A/ 70 V, 3.5 A/ 100 V |
| Speaker outputs: | 70 V, 100 V or 4-16 ohms |
| Input connectors: | XLR, 6.3 mm jack mounting socket |
| Output connectors: | XLR, 6.3 mm jack mounting socket |
| Line input: | 300 mV, 10 kohms |
| Distortion: | 0.5 %/ 1 kHz |
| Protection: | Overheat, overload, short-circuit, DC, softstart |
| Indicators: | Power, fault, clip, signal |
| Dimensions: | 483 x 385 x 92 mm |
| Rack installation with 2 U |
