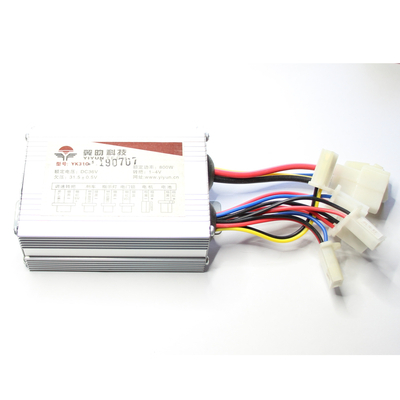

Motor controller for e-bike, e-scooter and 36VDC max 800W

Item number: 8825030601

Category: PWM step down / motor controller

29,50 €

including 19% VAT. , (Standard)

From piece Price per unit
2 28,61 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

Motor controller for e-bike, e-scooter and 36VDC max 800W
Speed ??controller for DC motor, up to 800W, 36 volts. This controller can be used as a replacement for most electric tricycles and other types of electric scooters, e-bikes or e-ATVs. Check that the voltage is compatible, the motor has the same or lower wattage and that the size, shape and color are similar.
  • Manufacturer Yiwu Qingjie E-commerce Co., Ltd
  • Voltage: 36VDC
  • Rated power: 800W
  • Undervoltage 31.5V ± 0.5V
  • Operating conditions: -25-45°C
  • suitable for brush motors 36VDC 800W
  • Brake handle: mechanical, normally open
  • Dimensions: 95 x 85 x 47.5mm without holder

The pin assignment is as follows:

Connector with thick cables

  • + blue/- yellow for Motor
  • + red/- black to the battery

Connector with thin cables

  • + red/- black to the charger (charging port), brake light, battery indicator, etc.
  • + red/- blue/ black to the gas (1-4V)
  • yellow/black to the brakes
  • red/blue to the ignition
