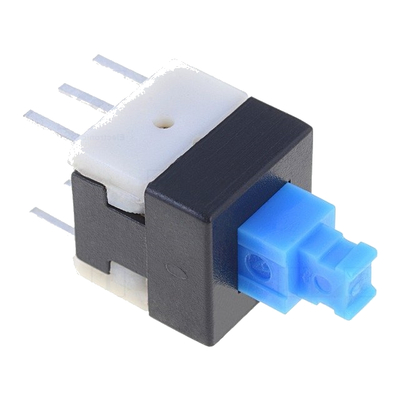

Microswitch TACT 2 x on/on 8 x 8mm
Description
Microswitch TACT 2 x on/on 8 x 8mm
- Manufacturer CANAL ELECTRONIC
- Type of switch microswitch TACT
- Contacts configuration DPDT
- Number of all positions 2
- Stable positions number 2-position
- DC contacts rating @R (at resistance load) 0.1A / 30VDC
- Mounting THT
- Illumination none
- Operating Force 1.6N

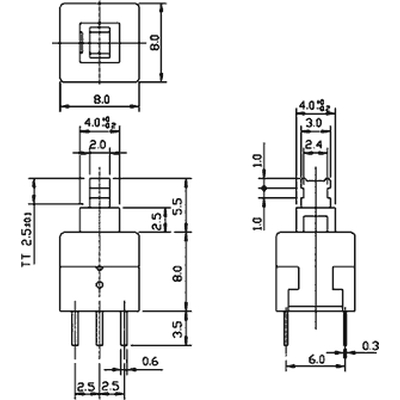

- Body dimensions 8 x 8mm
- Button height (measured from PCB) 13.5mm
- Switching method (item in brackets is instantaneous) ON-ON
- Button shape square
- Terminal pitch 2.5x6mm
- Operating temperature -25...65°C
- Leads for PCB, straight
- Max. contact resistance: 50Mohms
- Mechanical durability 100000cycles
- Electrical life 10000cycles
- Soldering temperature 245°C / 3 s
