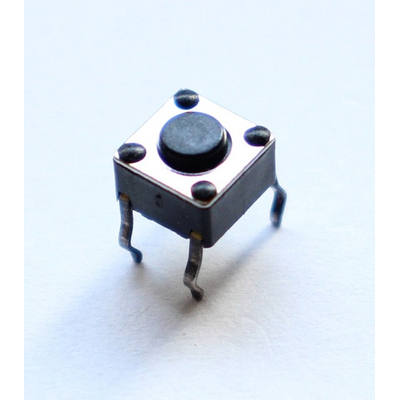

Micro pushbutton TACT 6 x 6mm button 4.3m
Description
TACT Micro Switch 6 x 6mm, 4.3mm Button
- Manufacturer: NINIGI
- Switch Type: TACT Micro Switch
- Contact Configuration: SPST-NO
- Number of Positions: 2
- Number of Stable Positions: 1-Digit
- Contact Rating: DC @R (with resistive load) 0.05A / 12VDC
- Mounting: THT
- Illumination: None
- Switching Force: 2.5N
- Housing Dimensions: 6 x 6mm
- Button Height (PCB Measured): 4.3mm
- Switching Method off/on
- Button shape: round
- Output pitch: 4.5x6.5mm
- Operating temperature: -25...70°C
- Button color: black
- Outputs: PCB mounting, straight
- Max. contact resistance: 50 MOhm
- Min. insulation resistance: 100 MOhm
- Soldering temperature: 250°C
