Metal installation kit for double DIN fascias 182 x 103mm

Item number: 25450381319

  • Allows the installation of a car radio in 2-DIN radio panels with a height of 113 mm and a width of 182 mm
  • Metal frame
  • Cover frame
  • Including installation hardware

Category: Car radio installation slot

15,95 €

including 19% VAT. , (Standard)

From Set Price per unit
2 15,47 €
Available

Shipping time: 2 - 5 workdays

Set

Description

Metal installation kit for double DIN fascias 182 x 103mm
Universal double ISO installation kit for double ISO radio fascias: This frame can be combined with double ISO radio fascias if the original radio frame is not compatible with the fascia.

Dimensions:

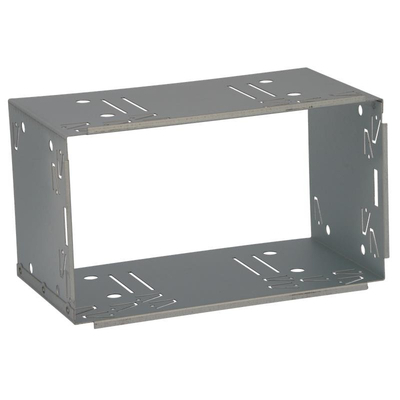

    Metal frame dimensions INNER (W x H x D): 178 x 100 x 102mm
    Metal frame dimensions EXTERNAL (W x H x D): 187 x 112 x 102mm
    Frame dimensions INNER (W x H): 173 x 98mm
    Frame dimensions EXTERNAL (W x H): 188 x 110mm

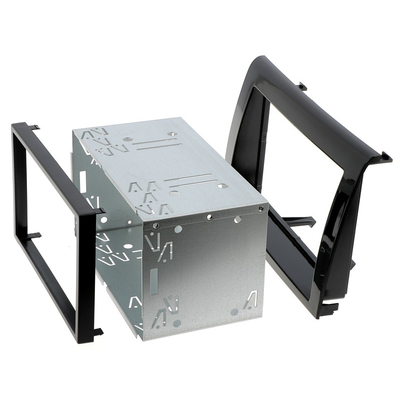

The kit consists of the following parts:

  • Metal frame
  • Frame
  • Mounting clips
  • Screws
  • Release bracket
  • 2 pieces of self-adhesive foam (rattle protection)
