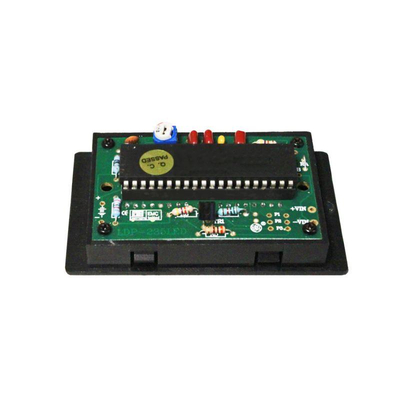

LED voltmeter installation module, red 14mm display - LDP-235
Description
LED voltmeter built-in module red 14mm display - LDP-235
Practical built-in module as a voltmeter with a freely definable measuring range of 0 to 200mV, 2V, 20V, 200V or 500V. Current measurements of 0 to 200µA, 2mA, 20mA, 200mA and 2A can be carried out via a shunt. Thanks to the snap-in frame, this inexpensive module can be integrated into any front panel of your own construction.
Practical built-in module as a voltmeter with a freely definable measuring range of 0 to 200mV, 2V, 20V, 200V or 500V. Current measurements of 0 to 200µA, 2mA, 20mA, 200mA and 2A can be carried out via a shunt. Thanks to the snap-in frame, this inexpensive module can be integrated into any front panel of your own construction.
Application as a volt/ammeter
- Voltmeter: 0 ... 200mV, 2V, 20V, 200V or 500 V
Ammeter: 0 ... 200µA, 2mA, 20mA, 200mA and 2A
Freely selectable decimal point via soldering point
Self-luminous red LED segment display
Operating voltage 7 VDC - 12 VDC
Specifications digital digits: 2,000
Display type: segment Backlight:
VDC max.: 500V mA DC max.: 2000mA mVDC max .: 200 mV µA DC max.: 200 µA
