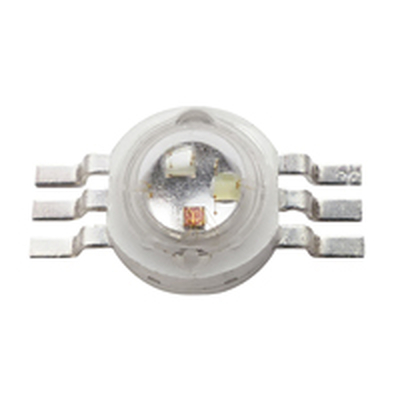

High power LED 3W RGB 140 °
Description
High power LED 3W RGB 140 °
High performance with the smallest construction. These 3W high power LEDs are used wherever high power is required in a confined space.
The attached lens produces a high beam angle of 140 ° which provides further illumination than conventional LEDs.
Whether for signal applications or already for illumination purposes, these high power LEDs are suitable for crafting purposes up to professional application.
High performance with the smallest construction. These 3W high power LEDs are used wherever high power is required in a confined space.
The attached lens produces a high beam angle of 140 ° which provides further illumination than conventional LEDs.
Whether for signal applications or already for illumination purposes, these high power LEDs are suitable for crafting purposes up to professional application.
- Operating voltage:
- forward voltage: red = 2.2 V. green / blue = 3.4 V.
- Forward current: 350 mA (up to 1000 mA max.)
- reverse voltage: 5V
- reverse current (VR = 5V): 5 µA
- power dissipation: 3x 1.1 W
- Luminous intensity: red = 35, green = 70, blue = 20 lm
- Light color: RGB
- Color temperature: red = 620 k, green = 520 k, blue = 460 k
- Color Rendering Index:
- Beam angle: 140 °
- Operating temperature: -30 to 60 ° C
- Chip material: InGaN
- Dimensions (LxWxH): 14.58 x 8 x 5.1 mm
- Attention: Insufficient cooling will cause the LED to be destroyed! Take care of the thermal management.
- Avoid direct eye contact with the bulb!
- Use only with anti-static wristband / gloves.
