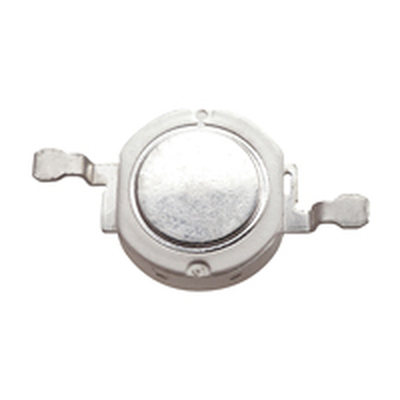

High Power LED 3W UV 400Nm - 405Nm (Black Light)
Description
High Power LED 3W UV 400Nm - 405Nm (Black Light)
High performance with the smallest construction. These 3W high power LEDs are used wherever high power is required in a confined space. The attached lens produces a high beam angle of 140 °, which provides further illumination than conventional LEDs. Whether for signal applications or already for illumination purposes, these high power LEDs are suitable for crafting purposes up to professional application.
High performance with the smallest construction. These 3W high power LEDs are used wherever high power is required in a confined space. The attached lens produces a high beam angle of 140 °, which provides further illumination than conventional LEDs. Whether for signal applications or already for illumination purposes, these high power LEDs are suitable for crafting purposes up to professional application.
- Operating voltage: 3.5V li>
- forward voltage: 3.0 - 3.6V li>
- Forward current: 700 mA (up to 1000 mA max.) li>
- reverse voltage: 15V li>
- reverse current (VR = 15V): 5 µA li>
- power dissipation: 3.1 W li>
- Light intensity: - li>
- Light color: UV li>
- Corrugated length: 400-45 Nm Li>
- Color Rendering Index: & nbsp; - li>
- Beam angle: 140 ° li>
- Operating temperature: -30 to 60 ° C li>
- Chip material: InGaN li>
- Dimensions (LxWxH): 14.58 x 8 x 5.1 mm li>
- Caution: Inadequate cooling inevitably leads to the defect of the LED! Take care of the thermal management. li>
- Avoid direct eye contact with the bulb! Li> ul>
