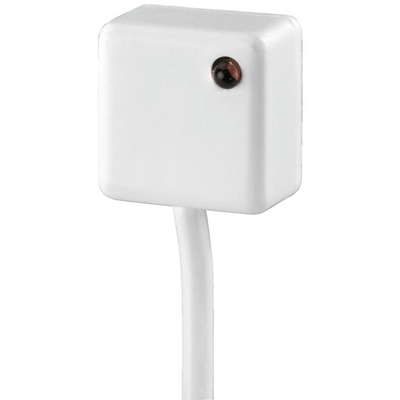

Glass breakage detector - VDS-2GBD/WS
Description
Glass breakage detector - VDS-2GBD/WS
with 4 m connection cable, white. Moulded and of compact size. Signal latching in case of glass breakage. Power supply via alarm control panel. NO contact.
- VdS (German assn. for property insurers) no.: G 196614, class B
- Detection range: 1.5 m max.
- Standby current: < 10 µA
- Power supply: 3-16 V
- Alarm switches: approx. 3.7 mA/6 V
- Admissible ambient temperature: -25 °C to +70 °C
- Dimensions: 19 x 19 x 11 mm
- Weight: 66 g
Technical Specifications
VDS-2GBD/WS
| VdS (German assn. f. property insurers) no. | G 196614, class B |
| Detection range | 1.5 m |
| Quiescent current | < 10 µA |
| Power supply | 3-16 V |
| Alarm switches | NO, 3.7 mA/6 V |
| Admiss. ambient temp. | -25-+70 °C |
| Dimensions | 19 x 19 x 11 mm |
| Weight | 71 g |
