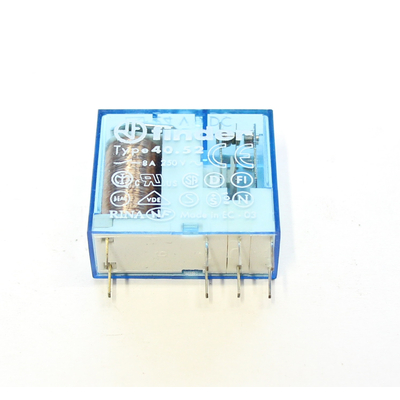

FIN 40.52 24VDC Relay 24VDC 8A 1 ??x ON/(ON) - 40.52 24VDC
Description
FIN 40.52 24VDC Relay 24VDC 8A 1 ??x ON/(ON) - 40.52 24VDC
- Manufacturer: FINDER
- Relay type: Electromagnetic
- Contact configuration: DPDT
- Nominal coil voltage: 24VDC
- Contact rating AC @R (resistive load): 8A / 250VAC
- Contact rating DC @R (resistive load): 8A / 30VDC
- Max. contact current: 15A; max. switching voltage: 220VDC, 400VAC
- Relay type: Sensitive, mini
- Mounting: PCB
- Coil resistance: 1.2k?
- External dimensions: 29 x 12.4 x 25mm
- Coil power consumption: 500mW
- Operating temperature: -40...85°C; relay series: 40.52
- Contact material: AgNi/Au 5µm
- Output pitch: 5mm
- Coil current: 20mA
