Electret microphone cartridge (omnidirectional polar pattern) - MCE-401
Description
Electret microphone cartridge (omnidirectional polar pattern) - MCE-401
with 150 mm shielded cable and insulated, tin-plated cable ends. ,
An external 1-2.2 kO resistor is required for AF decoupling.
with 150 mm shielded cable and insulated, tin-plated cable ends. ,
An external 1-2.2 kO resistor is required for AF decoupling.
- Polar pattern omnidir.
- Frequency range 50-16,000 Hz
- Sensitivity 7.9 mV/Pa
- Output impedance 2.2 kO
- S/N ratio > 58 dB
- Coupling capacitor 0.1-4.7 µF
- Admiss. ambient temp. 0-40 °C
- Power supply DC 1.5-10 V/0.5 mA

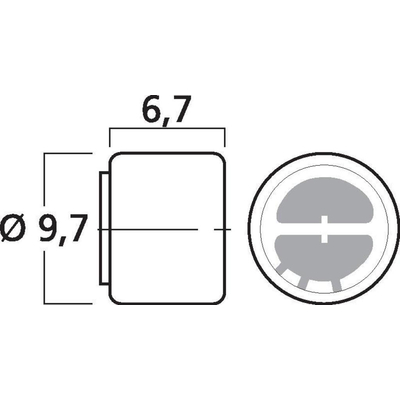

- Dimensions Ø 9.7 mm x 6.7 mm
- Weight 2 g
