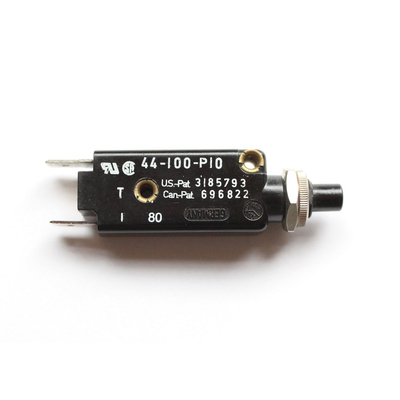

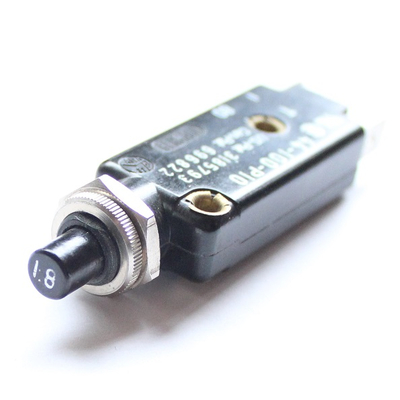

E-T-A Thermal Overcurrent Circuit Breaker 1,8A
Description
Thermal Overcurrent Circuit Breaker
- Temperature range: -20...+60 °C (-4...+140 °F)
- Current rating range: 1,8A
- Typical life: 2000 operations at 2 x IN
- Insulation resistance: > 100 M? (DC 500 V)
- nterrupting capacity: Icn 0.05...2 10 x I Interrupting capacity: (UL 1077) IN 1,8A, UN AC 250 V 200 A
- Vibration: 10 g (57-500 Hz) ±0.76 mm (10-57 Hz),to IEC 68-2-6, Test Fc,10 frequency cycles/axis
- Shock: 25 g (11 ms) to IEC 68-2-27, test Ea
- Humidity: 240 hours at 95 % RH: to IEC 68-2-3, test Ca
- Weight: approx. 15 g
Contacts can be oxidized.
