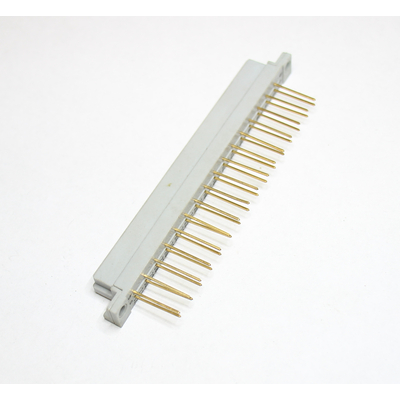

DIN 41612 Type B 32 Pin Connector
Description
DIN 41612 Type B 32 Pin Connector
- Manufacturer --
- Connector Type: DIN 41612
- Connector Type: Male
- Connector Type: Female
- Number of Poles: 32
- Spatial Orientation: 90°C
- Maximum Current: 2A
- Electrical Mounting: Press-in PCB
- Connector Output System: a+b
- Contact Plating: Selectively Gold-Plated
- Connector Variant: Type B
- Housing Material: Thermoplastic
- Mechanical Durability: 400 Cycles
- Conductor length 3 mm
- Operating temperature -55...125°C
- Traces from storage ```
