DI box phantom power - LH-068
Description

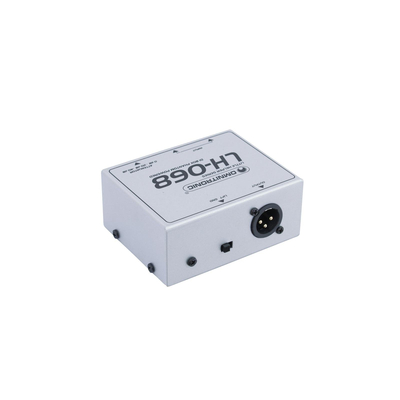

DI box phantom power - LH-068
1-channel DI box, phantom powered, active
1-channel DI box, phantom powered, active
- Phantom-powered DI box
- 1 high-impedance, unbalanced signal input, 6.3 mm jack
- 1 low-impedance, balanced XLR output
- 1 instrument loop-through output, 6.3 mm jack
- Converts unbalanced line signals (eg from instruments) to a balanced XLR output signal for connection to a mixing console
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Groundlift switch to avoid signal disturbances and ground loops
- Power +48 V Phantom Power
- Robust Gray Metal Case
Technical data
| Power supply: | 9-48V DC phantom power |
| Ger & auml; uschspannungsabstand: | 100 dB |
| Connection input:
|
|
| Input Level: | -10 dB to +40 dB |
| Port output: | XLR, sym. |
|
|
|
| Output level: | -10 dB to +2 dB |
| weight | 0.5 kg |
| Frequency range: | 1 - 50,000 Hz |
| H & ouml; he: | 4.5 cm |
| Depth: | 11.5 cm |
| width | 9.5 cm |
