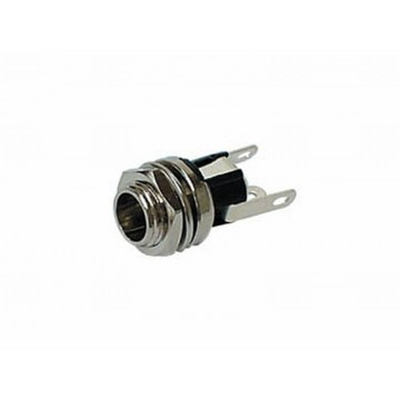

DC mounting plug 5.5 / 2.5 mm Central mounting
Description
DC mounting plug 5.5 / 2.5 mm Central mounting
- Soldering connections
- Size: 7.8mm,
- Material thickness: 3 mm
- For DC plug 2.5 x 5.5mm
- With switch
- Suitable for the hobbyuse
Specifications:
- Use: Thermoplastics
- Contact Pin: Nickel plated
- Rated voltage: 5A @ 12VDC
- Max. Power handling: AC500V, 60Hz for 1 minute
- Insulation resistance: 100MOhm min. At 500VDC
- Contact resistance: 30mOhm max. At AC100 mA (max.) 1 KHz
