DC-DC Step-Up Booster Module
Description

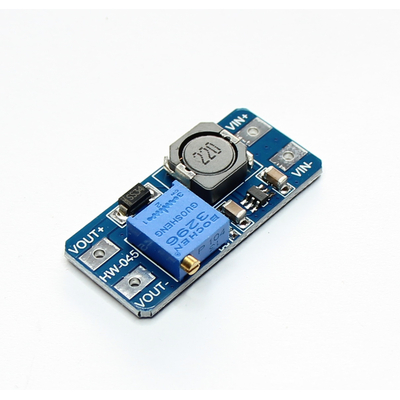

DC-DC Step-Up Booster Module
With this module, you can convert voltages from 2-24V to 3-28V (adjustable via the potentiometer). Even if the input voltage is changed, the output voltage remains constant. Note: It is best to use the converter only with a maximum output current of 1A. Use an optional heat sink to protect the module if you have continuous operation that should exceed > 0.8A.
With this module, you can convert voltages from 2-24V to 3-28V (adjustable via the potentiometer). Even if the input voltage is changed, the output voltage remains constant. Note: It is best to use the converter only with a maximum output current of 1A. Use an optional heat sink to protect the module if you have continuous operation that should exceed > 0.8A.
Technical Specifications:
- Input voltage: 2V to 24VDC
- Output voltage: 3V to 28V (adjustable)
- Maximum output current: The converter is rated for up to 2A, but for long life, it is recommended to use a heatsink for currents above 0.8A.
- Dimensions: 37.2 x 17.2 x 14.0mm.
